Strong Arm "Regular" Travel Yamaha YFZ450 A-arms

MX Racing Kit

+2 Wider per side

+0 Forward

Strong, Durable & Tough, guaranteed stronger than stock.

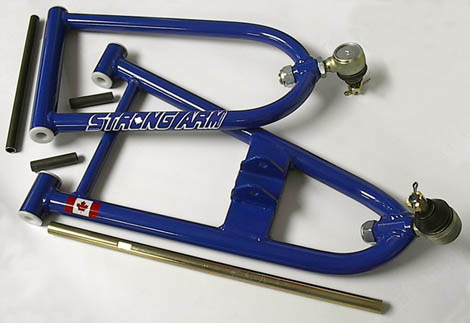

A-arm Kit comes with (4) A-arms, (2) HD "Gold" Tie Rods, (4) HD 16mm "Gold" Ball Joints, (12) Delrin Bushings, (6) Sleeves

You gain durability AND increased cornering stability AND greater wheel travel.

Arms feature HD 16mm ball joints that are- "gold" yellow dichromate metal plated to stop corrosion and a double wired on rubber boot to keep dirt and water out. All four ball joints are replaceable. Spindle Reaming NOT Required with Symmetry ball joints.

Wheel camber is adjustable on the upper ball joints.

Aftermarket shocks are completely optional Elka Triple Rate shocks. Stock shocks will work.
Click Image to Order choose from many Styles & Spring Rates.
All Elka shocks are SSD (Self Sagging Device) a.k.a Zero Preload (no additional charge) Go to YFZ450 Shocks

Stainless steel extended brake lines required. Streamline Performance Lines available in five colors clear, red, blue, smoke and yellow Go to YFZ450 Brake Lines


Symmetry Arms are powder coated in your choice of colors at no additional charge: Black, Yamaha Blue, Green, Silver Vein, Red Baron, Orange, Pearl, Chrome, White, Suzuki Blue, Purple, Yellow, Silver, and Gray.

Streamline Performance YFZ450 Front Kit Click Image to Order

Optional Heavy Duty Ricky Stator tie rod kits
Click Image to Order

 The tie rod threads are 12mm like Honda

not the 10mm Yamaha

- ! Never Bend a Tie Rod or End Again ! -

2 left hand thread HD tie rod ends
2 right hand thread HD tie rod ends
2 HD tie rods
The tie rod ends are made with the factory Yamaha taper and 10mm stud.
